Sample App

This page describes how to build an application that interacts with the TotalAgility SDK.

App creation

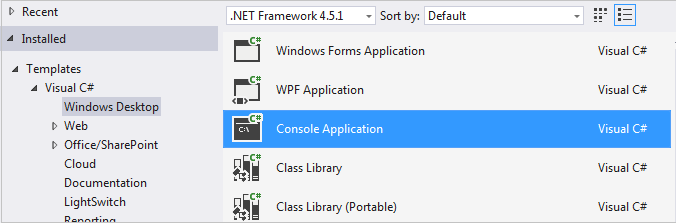

Create a new Console Application in Visual Studio and change the .NET Framework at the top to the latest version (4.5.1 at time of writing):


Add references

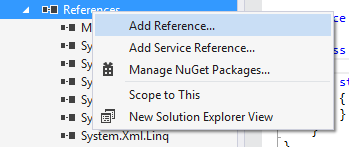

Next, references to the TotalAgilityFiles need to be added. Open the project and right click on References and choose Add Reference:

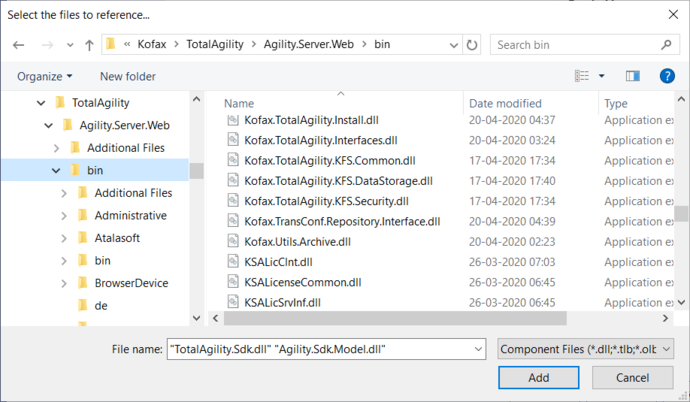

Click the Browse tab on the left and then the Browse... button. Navigate to the Agility.Server.Web\bin directory under the TotalAgility install and choose:


then click Add. A reference to System.Runtime.Serialization also needs to be added in the same way, and can be found in the Assemblies tab on the left:


Click on Ok and the new references should be reflected in the list:


Updating the App.Config file

The App.Config file has all the configuration settings for a project. To connect to TotalAgility some extra settings need to be added.
When you first open the file it will look like:

1 <?xml version="1.0" encoding="utf-8" ?>
2 <configuration>
3  <startup>
4  <supportedRuntime version="v4.0" sku=".NETFramework,Version=v4.5.1" />
5  </startup>
6 </configuration>

This should be changed to the following:

1 <?xml version="1.0" encoding="utf-8"?>
2 <configuration>
3  <appSettings>
4  <add key="IsMultitenantDeployment" value="false"/>
5  <add key="SdkServicesLocation" value="http://localhost/TotalAgility/Services/SDK"/>
6  </appSettings>
7  <system.serviceModel>
8  <bindings>
9  <basicHttpBinding>
10  <binding name="BasicHttpBinding_Service" closeTimeout="00:01:00"
11  openTimeout="00:01:00" receiveTimeout="00:10:00" sendTimeout="00:01:00"
12  allowCookies="false" bypassProxyOnLocal="false" hostNameComparisonMode="StrongWildcard"
13  maxBufferSize="2147483647" maxBufferPoolSize="524288" maxReceivedMessageSize="2147483647"
14  messageEncoding="Text" textEncoding="utf-8" transferMode="Buffered"
15  useDefaultWebProxy="true">
16  <readerQuotas maxDepth="32" maxStringContentLength="8192" maxArrayLength="16384"
17  maxBytesPerRead="4096" maxNameTableCharCount="16384" />
18  <security mode="TransportCredentialOnly">
19  <transport clientCredentialType="Windows" proxyCredentialType="None"
20  realm="" />
21  <message clientCredentialType="UserName" algorithmSuite="Default" />
22  </security>
23  </binding>
24  </basicHttpBinding>
25  </bindings>
26  <client>
27  <endpoint name="SdkCaseServiceEndpoint"
28  binding="basicHttpBinding"
29  bindingConfiguration="BasicHttpBinding_Service"
30  contract="Agility.Sdk.Model.Interfaces.Services.ICaseService"/>
31  <endpoint name="SdkActivityServiceEndpoint"
32  binding="basicHttpBinding"
33  bindingConfiguration="BasicHttpBinding_Service"
34  contract="Agility.Sdk.Model.Interfaces.Services.IActivityService"/>
35  <endpoint name="SdkClientServiceEndpoint"
36  binding="basicHttpBinding"
37  bindingConfiguration="BasicHttpBinding_Service"
38  contract="Agility.Sdk.Model.Interfaces.Services.IClientService"/>
39  <endpoint name="SdkJobServiceEndpoint"
40  binding="basicHttpBinding"
41  bindingConfiguration="BasicHttpBinding_Service"
42  contract="Agility.Sdk.Model.Interfaces.Services.IJobService"/>
43  <endpoint name="SdkProcessServiceEndpoint"
44  binding="basicHttpBinding"
45  bindingConfiguration="BasicHttpBinding_Service"
46  contract="Agility.Sdk.Model.Interfaces.Services.IProcessService"/>
47  <endpoint name="SdkServerServiceEndpoint"
48  binding="basicHttpBinding"
49  bindingConfiguration="BasicHttpBinding_Service"
50  contract="Agility.Sdk.Model.Interfaces.Services.IServerService"/>
51  <endpoint name="SdkTenantServiceEndpoint"
52  binding="basicHttpBinding"
53  bindingConfiguration="BasicHttpBinding_Service"
54  contract="Agility.Sdk.Model.Interfaces.Services.ITenantService"/>
55  <endpoint name="SdkUserServiceEndpoint"
56  binding="basicHttpBinding"
57  bindingConfiguration="BasicHttpBinding_Service"
58  contract="Agility.Sdk.Model.Interfaces.Services.IUserService"/>
59  <endpoint name="SdkResourceServiceEndpoint"
60  binding="basicHttpBinding"
61  bindingConfiguration="BasicHttpBinding_Service"
62  contract="Agility.Sdk.Model.Interfaces.Services.IResourceService"/>
63  <endpoint name="SdkCategoryServiceEndpoint"
64  binding="basicHttpBinding"
65  bindingConfiguration="BasicHttpBinding_Service"
66  contract="Agility.Sdk.Model.Interfaces.Services.ICategoryService"/>
67  <endpoint name="SdkSecurityServiceEndpoint"
68  binding="basicHttpBinding"
69  bindingConfiguration="BasicHttpBinding_Service"
70  contract="Agility.Sdk.Model.Interfaces.Services.ISecurityService"/>
71  <endpoint name="SdkBusinessCalendarServiceEndpoint"
72  binding="basicHttpBinding"
73  bindingConfiguration="BasicHttpBinding_Service"
74  contract="Agility.Sdk.Model.Interfaces.Services.IBusinessCalendarService"/>
75  <endpoint name="SdkDynamicResourceServiceEndpoint"
76  binding="basicHttpBinding"
77  bindingConfiguration="BasicHttpBinding_Service"
78  contract="Agility.Sdk.Model.Interfaces.Services.IDynamicResourceService"/>
79  <endpoint name="SdkCaptureDocumentServiceEndpoint"
80  binding="basicHttpBinding"
81  bindingConfiguration="BasicHttpBinding_Service"
82  contract="Agility.Sdk.Model.Interfaces.Services.ICaptureDocumentService"/>
83  <endpoint name="SdkCaptureProjectServiceEndpoint"
84  binding="basicHttpBinding"
85  bindingConfiguration="BasicHttpBinding_Service"
86  contract="Agility.Sdk.Model.Interfaces.Services.ICaptureProjectService"/>
87  <endpoint name="SdkCaptureKfsServiceEndpoint"
88  binding="basicHttpBinding"
89  bindingConfiguration="BasicHttpBinding_Service"
90  contract="Agility.Sdk.Model.Interfaces.Services.ICaptureKfsService"/>
91  <endpoint name="SdkAssetServiceEndpoint"
92  binding="basicHttpBinding"
93  bindingConfiguration="BasicHttpBinding_Service"
94  contract="Agility.Sdk.Model.Interfaces.Services.IAssetService"/>
95  </client>
96  </system.serviceModel>
97 </configuration>

Writing the application

Making calls to the TotalAgility SDK has two parts:

As an example, the first part of any application will be logging on to the system, in this example Agility.Sdk.Services.UserService.LogOnWithWindowsAuthentication2 "LogOnWithWindowsAuthentication2" API will be used, which logs in the current Windows user.
This method takes an short, indicating the logon protocol, a boolean indicating that the user should be logged on uncondtionally and returns a Session2 object that has the session details.
In order to call the method a UserService object is needed:

TotalAgility.Sdk.UserService userService = new TotalAgility.Sdk.UserService();

Then the call can be made, passing in 7 for the logOnProtocol parameter, indicating a web logon, true for the unconditionalLogOn parameter and setting a new Session2 object equal to the return value:

Agility.Sdk.Model.Users.Session2 session2 = userService.LogOnWithWindowsAuthentication2(7, true);

Once the above has been added the code will look like the following:

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
namespace TotalAgilitySdkTest
{
class Program
{
static void Main(string[] args)
{
// create a UserService object
TotalAgility.Sdk.UserService userService = new TotalAgility.Sdk.UserService();
// call Logon2 and capture the result in a new Session2 object
Agility.Sdk.Model.Users.Session2 session2 = userService.LogOnWithWindowsAuthentication2(7, true);
}
}
}
