Imposition - Sample Layouts

Suppose you have a sixteen-page PDF document you want to have printed with eight pages on one side of each sheet. These samples show the outcome from different sets of settings.

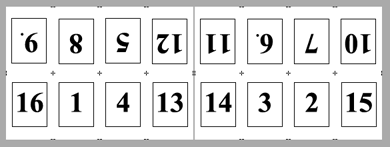

8-Up Booklet, Saddle Stitching, Sheet Wise style, Interleave, do not Flip backs of sheets:

diagram of page pattern

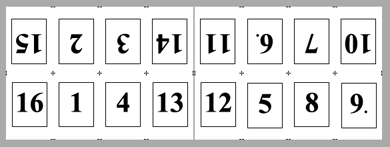

8-Up Booklet, Perfect Binding, Work and Turn style, Fronts first then backs, do not Flip backs of sheets:

diagram of page pattern

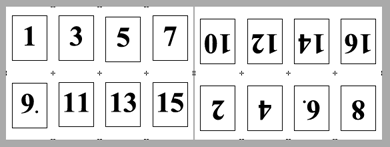

8-Up Booklet, Perfect Binding, Work and Tumble style, Interleave, Flip backs of sheets:

diagram of page pattern

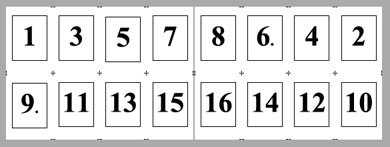

Cut Stacks, Double-sided, Fronts first then backs reversed, Flip backs of sheet:

diagram of page pattern



Sequential, Double-sided, Fronts first then backs, do not Flip backs of sheet:

diagram of page pattern



Step and Repeat:

diagram of page pattern
