This tutorial demonstrates how to create a plug-in that validate fields using Microsoft Visual Basic 6.0. In this tutorial you will:
Create a DLL that subscribes to an INVOICES event.
Connect the plug-in to INVOICES via Eilocal.ini.

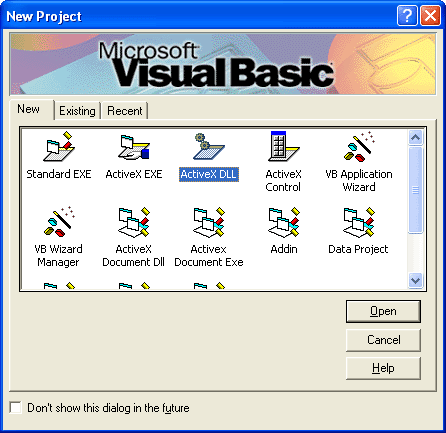

Create a new ActiveX DLL project using Microsoft Visual Basic 6.0.
Rename the project to "myValidation" and rename the default class module to "clsServer". You will use these names later when you add the plug-in to Eilocal.ini.
Add a reference to the INVOICES type library.
|
|
|
The myValidation plug-in has these functions:
Connect: Connects to an INVOICES module and subscribes to the AppStarted event in the Manager module.
OnInvoiceComplete: Contains code for validating invoice fields.
ConfigurePlugin: Determines what happens when the Configure button is clicked in the Extension programs dialog in the Manager module.
Disconnect: Releases memory allocated by the plug-in.
Copy and paste the code below into the clsServer module.s
Option Explicit
' Declare a reference to the Application object
Private objEHApplication As EHICOM.Application
Public Function Connect(objEHIApp As Object, sIniFile As String, sIniSection As String) As Long
Set objEHApplication = objEHIApp ' Save the application object for future references
' Setup the subscriptions
Select Case objEHApplication.ModuleType
Case eiManager
Case eiScan
Case eiInterpret
objEHApplication.Subscribe Me, "InvoiceComplete", "OnInvoiceComplete"
Case eiVerify
objEHApplication.Subscribe Me, "InvoiceComplete", "OnInvoiceComplete"
Case eiTransfer
Case eiOptimizer
End Select
Connect = evtOK
End Function
Public Function ConfigurePlugin() As Long
' Called by clicking the Configure button
MsgBox "No configuration is available for this plug-in"
ConfigurePlugin = evtOK
End Function
Public Function OnInvoiceComplete() As Long
On Error GoTo OnInvoiceCompleteException
' Get a reference to the current invoice,
' since we will be using that object frequently.
Dim objInvoice As Invoice
Set objInvoice = objEHApplication.CurrentInvoice
' Get references to all the fields you need.
' Note that the following lines might throw an exception
' (caught by the error handler) if the fields do not exist.
Dim objNetField As InvoiceField, objVatField As InvoiceField, objTotalField As InvoiceField
Set objNetField = objInvoice.Fields("Net_Amount")
Set objVatField = objInvoice.Fields("VAT_Amount")
Set objTotalField = objInvoice.Fields("Total_Amount")
' Validate net + vat against total
' We use the "Val" VB function to convert the string value to a numeric before
' performing any arithmetic operations.
' This function requires decimal char to be a point (.)
' A better way would be to use the DisplayString property of the field,
' and then use the information found in Eiglobal.ini (DisplaySettings)
' to convert the string correctly.
If (Val(objNetField.Value) + Val(objVatField.Value)) <> Val(objTotalField.Value) Then
' Total does not match net + vat. Warn the user if in Verify.
If objEHApplication.ModuleType = eiVerify Then
MsgBox "Balance not zero, captured total does not match calculated total"
End If
' Set validation error on one of the fields (we do not know which one is incorrect).
objTotalField.Status = eiFieldValidationError
End If
' Return evtOK
OnInvoiceComplete = evtOK
Exit Function
' Error handler
OnInvoiceCompleteException:
' Only display a message if in Verify.
If objEHApplication.ModuleType = eiVerify Then
MsgBox "Internal error:" & vbNewLine & Err.Description
End If
OnInvoiceComplete = evtError
End Function
Public Function Disconnect(objEHIApp As Object) As Long
' Release memory
Set objEHApplication = Nothing
' Return evtOK
Disconnect = evtOK
End Function
Save the project.
Build the DLL and copy it to INVOICES' Bin folder.
In order to use the plug-in, it must be specified in Eilocal.ini. The sample below shows a typical Manager plug-in section with the HelloWorld plug-in specified in blue text.
;***********************
;* Manager *
;***********************
[Plugins::eimngr]
Plugin1=Common
Plugin2=Manager
Plugin3=DBAdmin
Plugin4=myValidation
[eimngr::Common]
Name=Common Dialogs
Type=COM
SupportIDispatch=TRUE
Classname=ReadSoft.INVOICES.GUI.Extensions.Plugin
[eimngr::Manager]
Name=Manager Dialogs
Type=COM
SupportIDispatch=TRUE
Classname=eimngrdlg.cserver
[eimngr::myValidation]
Name=myValidation
Type=COM
SupportIDispatch=TRUE
Classname=myValidation.clsServer
After you save Eilocal.ini, you can run an Interpret or Verify job to see the results.
Note: Microsoft Visual Basic automatically registers DLLs when you make them from the File menu. If you want to use a plug-in on another computer, you must register the DLL on that computer.
