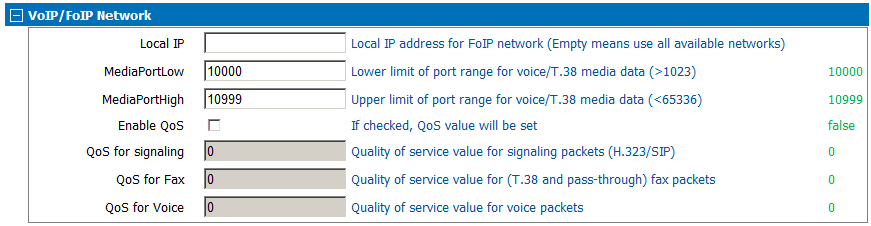

VoIP/FoIP Network Tab

Local IP

This parameter sets the local IP address for FoIP network. Empty means use all available networks.

MediaPortLow

Lower limit of port range for T.38 data (>1023).

MediaPortHigh

Upper limit of port range for T.38 data (<65336).

Enable QoS

If selected, quality of service will be set. For more information about quality of service settings, please refer to the Fax over IP Technical Manual.

QoS for signaling

Quality of service value for signaling packets (H.323/SIP).

QoS for T.38

Quality of service value for T.38 packets.

QoS for Voice

Quality of service value for voice packets.
