Creating a form that uses collections

For this example a form containing a table that has columns for a user's name and id that will be populated using the collection returned from a call to GetResources2.
The Id column will then be used as input for a call to GetResourcesEmailAddresses which will be used to populate a dropdown list of those users' email addresses.
To begin with a blank form needs to be created in Form Designer. Add a table with two columns and rename them to something meaningful. Then add a dropdown box and give it a name:

Populating the Name and Id columns

To make the call to GetResources2 an Action needs to be created. Change the type to .Net Method, the name to GetNameAndId.
Set Assembly to the ToalAgility.Sdk.dll and choose the ResourceService class and GetResources2 for the Method:

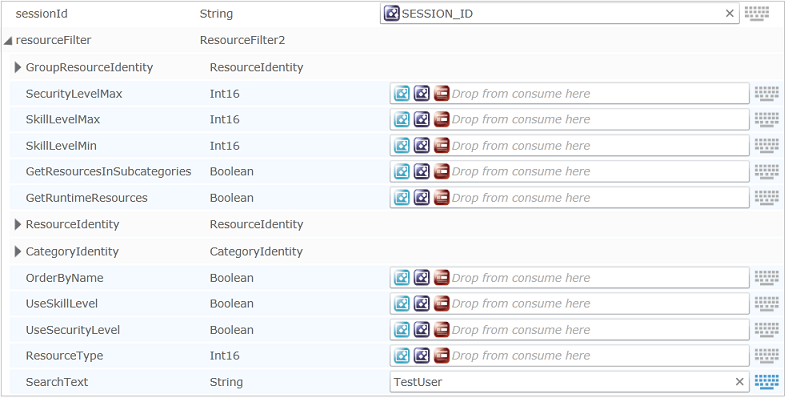

The test system has been set up with two test users, TestUser1 and TestUser2. The simplest way to search for them is to supply "TestUser" in the SearchText parameter of resourceFilter
sessionId also needs to be set to the servevr variable SESSION_ID:

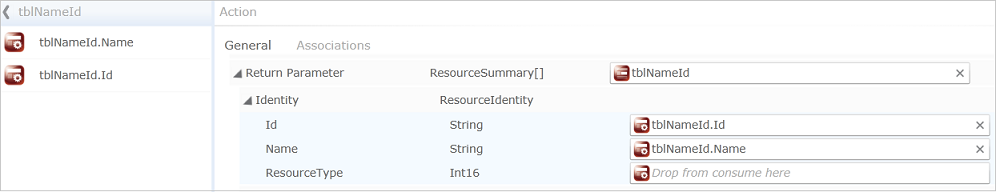

The last thing that needs to be done is mapping the returned data on to the table coulmns:

dragging the table name onto Return Parameter
opening up Return Parameter and Identity
click on the table name on the left so that the table's columns are shown
drag the Name column onto Identity->Name and the Id column onto Identity->Id

That action is now complete; click Ok to finish. A new action needs to be set up for the call to GetResourcesEmailAddresses.
This follows the same pattern before except the method to call is GetResourcesEmailAddresses instead. sessionId will again be mapped to the server variable SESSION_ID.

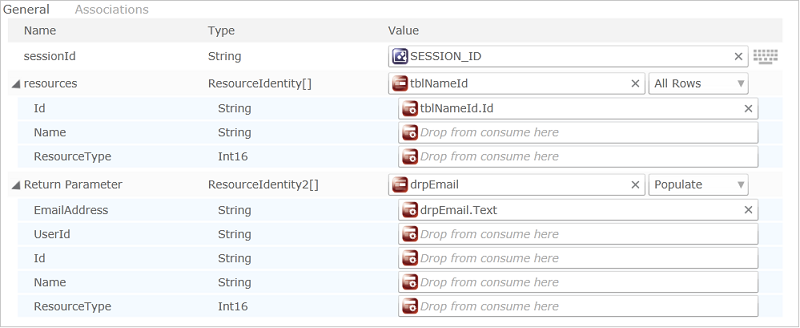

The call to GetResourcesEmailAddresses requires either the Id or the Name of each resource:

Drag the table name onto ResourceIdentity
Ensure All Rows is selected in the dropdown box
Open up resources and click on the table name to show the column names
Drag the Name column onto resources->Name or the Id column onto resources->Name

To add the returned email addresses to the dropdown list:

Drag the dropdown list onto Return Parameter
Open up Return Parameter
Click on the dropdown list and drag the Text field onto Return Parameter->EmailAddress

Click on Ok to finish the action. Both actions need to be associated with the form:

click on the Designer button

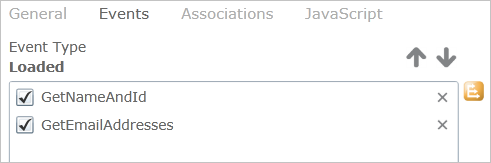

Click on the background of the form and bring up the extended properties and go to the Events tab
Drag both actions to the Loaded table. It is important that GetEmailAddresses runs second as it relies on the data being loaded into the table by GetNameAdId

Click Close and the form can then be released.

Viewing the output

To see the output a link to the form needs to be created. The simplest way of doing this is to add an item to the navigation that is being used. For this example the default WorkspaceMenu will be used.:

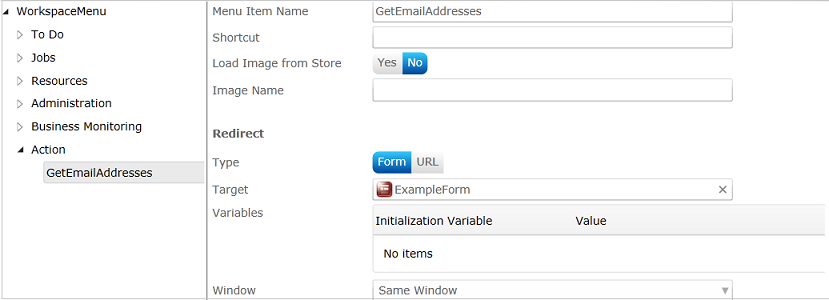

Open the navigation and open up the WorkspaceMenu entry under Menu Items.
Highlight WorkspaceMenu and click the + button to create a new menu item which will be called MainMenu1
Rename MainMenu1 to something meaningful such as Action
Highlight the new menu item and press the button again to create a new sub menu called Sub-Menu1.1
Click on the new sub menu and rename it to GetEmailAddresses
Drag the form that was created onto the Target box
Click Save

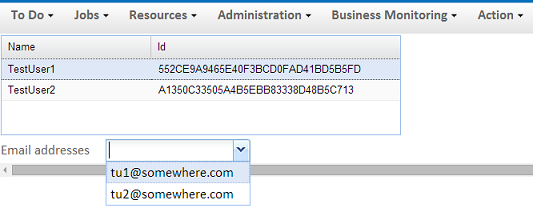

Loading the Workqueue and then choosing the menu option Action->GetEmailAddresses will bring up the finished page with the data in the relevant items:
