Set(Itrp/Veri /Tran )UDV method

Applies to

Description

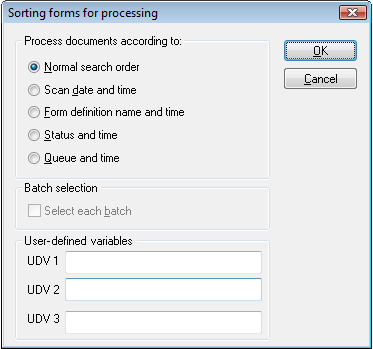

Sets a user-defined variable (UDV) to a string value for the job. (See the UDV 1, UDV 2, and UDV 3 settings in the Sorting forms to process dialog in the job description for the respective module.)

See detailed description of UDV functionality in SetUDV method.

Syntax

Object.SetItrpUDV(UDVNo, UDVValue)

Object.SetVeriUDV(UDVNo, UDVValue)

Object.SetTranUDV(UDVNo, UDVValue)

Part	Data type	Description
Object	Object	A Job object.
UDVNo	Integer	UDV number 1, 2 or 3.
UDVValue	String	A character string with a maximum length of 79. Longer strings are truncated to 79 characters.

Settings

Return value

0 if OK. -1 if UDVNo is less than 1 or greater than 3. See Event return value constants.

Classic method

None.
