Client credentials grant

client credentials grant

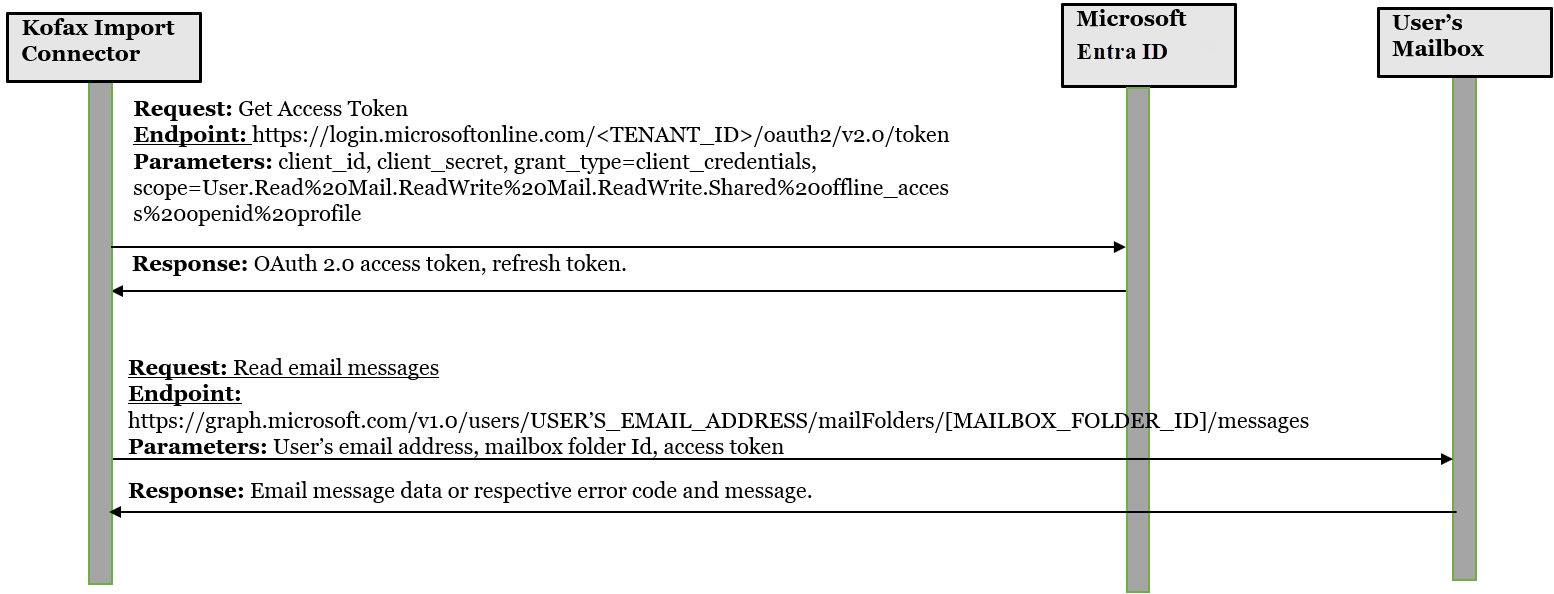

Diagram flow

  1. Kofax Import Connector sends the parameters (client_id, client_secret, grant_type=client_credentials, scope=User.Read%20Mail.ReadWrite%20Mail.ReadWrite.Shared%20offline_access%20openid%20profile) to Microsoft Entra ID using the end point URL.

  2. Once the authorization is successful, Microsoft Entra ID sends back the OAuth 2.0 access token, refresh token for accessing the user mailbox.

  3. Kofax Import Connector then send the user’s email address, mailbox folder to poll and access token for polling the messages.
