Provide workflow details

You can configure various elements in your workflow, add new data, set the display order of the data, and update application settings on the Workflow Details tab.

1. On the Quick Workflows page, click Create new workflow.

   The Tungsten TotalAgility Quick Workflow page opens, where you can configure the workflow details.

2. Enter a unique Name for the application. This name is also used for the generated artifacts, such as business processes, the Create new job form, work type, work queue query, and job query.

   If an artifact with the same name exists while saving the application, a message appears and you must provide a different name for the artifact. A work queue query and a job query can have the same name

3. By default, the description is provided in the Description box. You can change the description as needed.

   A description can include a maximum of 150 characters.

4. Optional. Specify the Expected duration within which the job should be completed. On publishing the solution, the amber threshold of the job is set to 50% of the expected duration.

   If you update the time, the amber threshold is only updated after publishing the solution.

5. By default, an image is provided in the Image box, however, you can change the image by selecting an existing image from the database or uploading a new image.

   • To select an existing image, on the Image list, click the down arrow and select the image.

   • To upload a new image, do the following:

     1. Click New.

        The Upload images dialog box is displayed.

     2. On the Category list, select the category for the new image.

     3. Click Browse and select the image file to upload, or drag the file from your system to the Images box.

     4. If any files being uploaded already exist, you can overwrite the existing file by selecting Overwrite existing files.

     5. Optional. Provide a Description for the image, such as "Company workflow images. "

     6. Click Save to upload an image.

     7. Once the file is uploaded, click Finish.

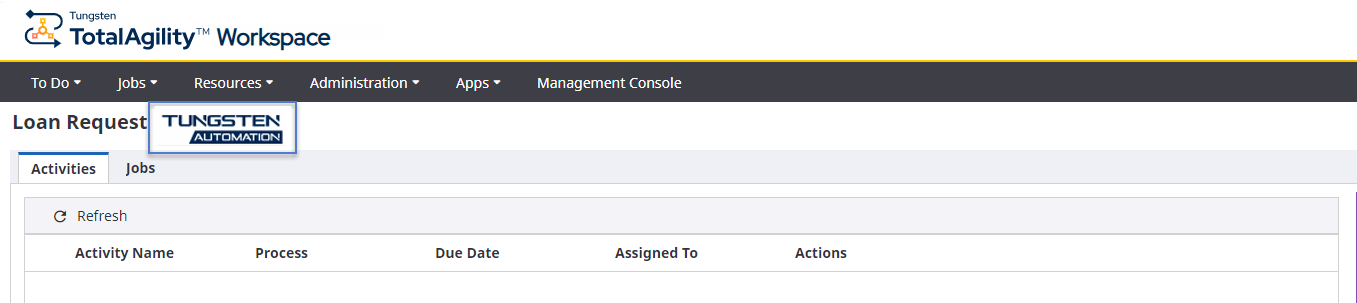

     The uploaded image is saved to the database and appears next to the title in the TotalAgility Workspace as shown in the image below.



6. Save your workflow.

   For information on editing the workflow in the TotalAgility Designer, see Modifying a workflow solution in TotalAgility Designer
