Display options

Use Display options to present your data in the format most useful for your organization.

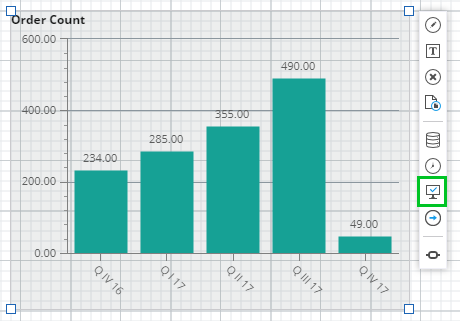

  1. Click the chart to open the context menu on the right side of the chart, and select the Display icon.

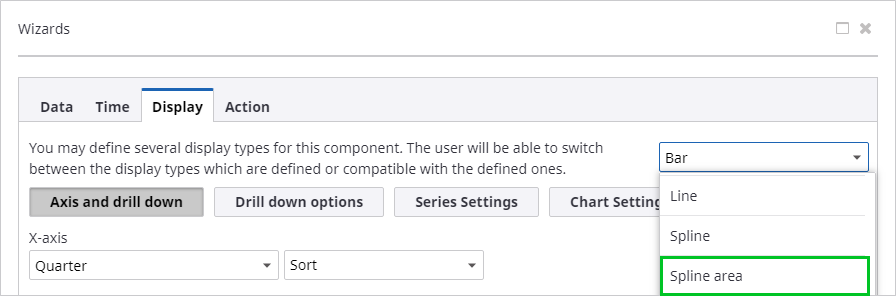

  2. Click the first list to change the chart type and select Spline area. Instead of a line graph, this chart will now be presented as a spline (smooth curve) with its area shaded.

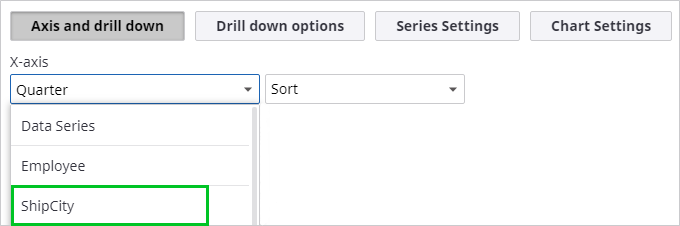

  3. Change the X-axis list from Quarter to ShipCity. This means that you will plot against City Names rather than Quarters.

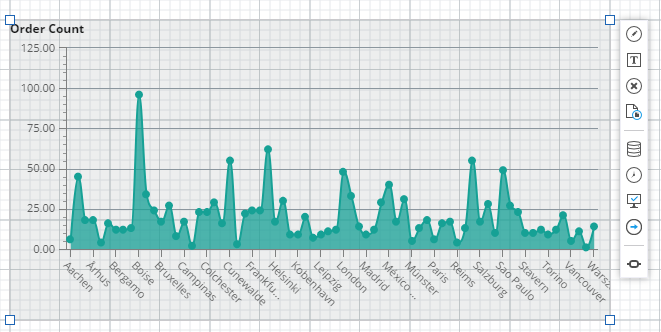

  4. Click OK. Now you can see Order Count data broken down per City.

  5. On the Actions toolbar, click Save.
