Create or edit a tooltip format
-
On the
Documents Tree,
right-click
Tooltip formats, and
select
New Tooltip Format.
The "New Tooltip format" window appears.
-
Assign a name to the tooltip format and click
OK.
A list of editable components appears in a table. You can edit the tooltip format for any component on the list.
-
To edit a component, click the pencil icon
in the applicable row.
The Tooltip Format Editor window appears.
-

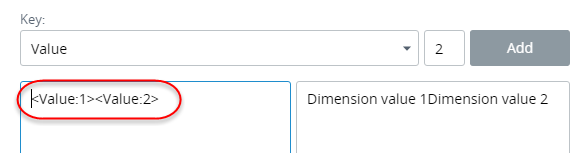

To add a new key to the tooltip format, select a key from the
list or type any text. Keys are metric/record parameters displayed in the
tooltip window when you hover over some point on the chart.
The left pane lists the available tooltip elements. The right pane lists the values for each element. You can delete any element that is unnecessary.
-
In the blank space to the right of the list menu, type the static
number dimension, if applicable. This field is used to differentiate between
several identical keys. When finished, click
Add to add the new key to
the formula.
- Click OK.
-
Save
the changes.
