SOAP
Robots can initiate SOAP requests to communicate with programs installed on other computers, pass necessary information, and return a response.

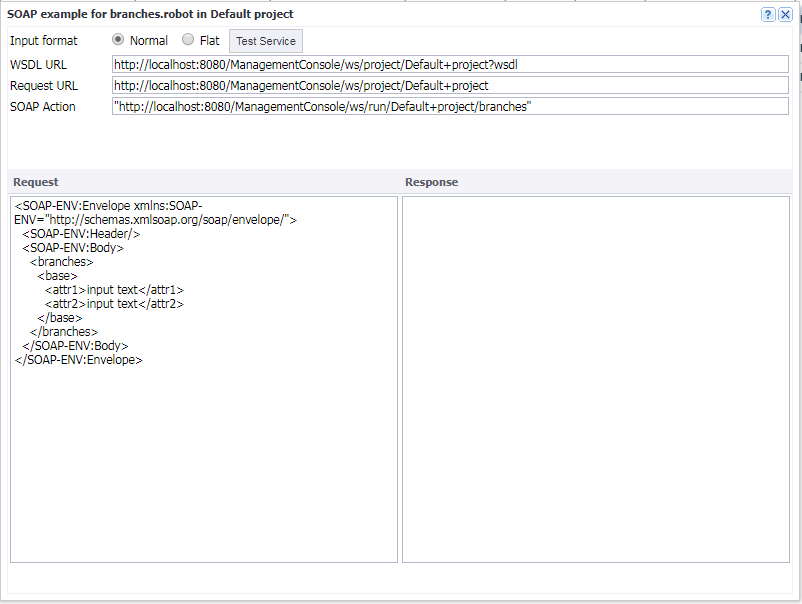

On the SOAP column to access a window for editing and testing your SOAP request.
tab click theUse the Request pane in the service window to construct a request. Click Test Service to execute the robot. The result is then displayed in the Response pane.
- Input Format
-
"Normal" or "flat" refers to the structure of a SOAP request message. For example, if a robot myRobot expects input variables var1 and var2, both of a type that has attributes attr1 and attr2, then "normal" would expect a SOAP message that looks like the following
<myRobot> <var1> <attr1>Some value</attr1> <attr2>Another value</attr2> </var1> <var2> <attr1>More input</attr1> <attr2>and some more</attr2> </var2> </myRobot>
The "flat" structure would require the SOAP message to look as follows:
<myRobot> <var1__attr1>Some value</var1__attr1> <var1__attr2>Another value</var1__attr2> <var2__attr1>More input</var2__attr1> <var2__attr2>and some more</var2__attr2> </myRobot>
The flat structure was introduced for compatibility reasons.
- WSDL URL
-
The URL for the WSDL of the project that this robot belongs to. Note that this URL is identical for all robots of the same project.
- Request URL
-
When running a robot, an HTTP POST request should be sent to this URL.
- SOAPAction
-
When running a robot, a HTTP header called SOAPAction should be present with the value shown.
- Request
-
This field is pre-filled with an example SOAP message. All input attributes will have default/test values. It can be edited before pressing Test Service.
- Response
-
A non-editable field which contains output from a robot run.
If there are errors in the input parameters or errors during the robot run, a SOAP Fault message is shown (containing a reason and some details for the error).
- Important Notes
-
- Project names can contain characters that are not allowed in WSDL; therefore project names might be different in WSDL/SOAP messages. More specifically, all characters not a-z, A-Z, 0-9, or _ will be replaced by _.
- Similarly, robot names may appear different. They are converted similarly to project names, but when a robot name is changed, a special suffix (such as _1234) is also added.
- Currently SOAP 1.1 is supported.
