Call Desktop Automation Robot
This action creates a Call Desktop Automation Robot step required to call a Desktop Automation robot from a Web Automation robot. For more information, see Get Started.
Before using the Desktop Automation feature, you need to configure Automation Devices and specify a reference to an Automation Device (not required when automating terminals).
Properties
Configure the Call Desktop Automation Robot step using the following properties.
- Desktop Automation Robot
- Specify a Desktop Automation robot to use.
- Input Value
- Provide an input value for the Desktop Automation robot.
- Output Mapping
- Assign a variable to hold the output value from the Call Desktop Automation Robot step.
- Required Devices
- Specify the way to connect to an automation device for the Call
Desktop Automation
Robot step. You can select
Static Reference,
Dynamic Reference, or
Trigger Reference. See
Reference to Automation Device
for more information.
If you select Static Reference or Trigger Reference, specify an Automation Device Mapping to use.
If you select Dynamic Reference, specify a mapping name to use in the Connect to Device step. Once the Dynamic Reference connection was used by the robot and device is connected, the connection stays alive and can be used by the next Call Desktop Automation Robot steps in your robot.
-

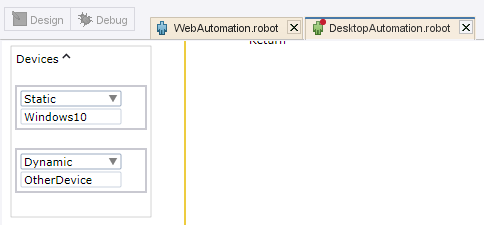

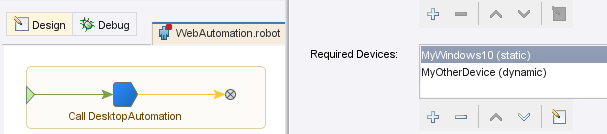

The number of devices specified in the Web Automation robot and the Desktop Automation robot must match.
- The devices names that you set in the
Desktop Automation
robot may differ from those in the
Web Automation
robot.
-
