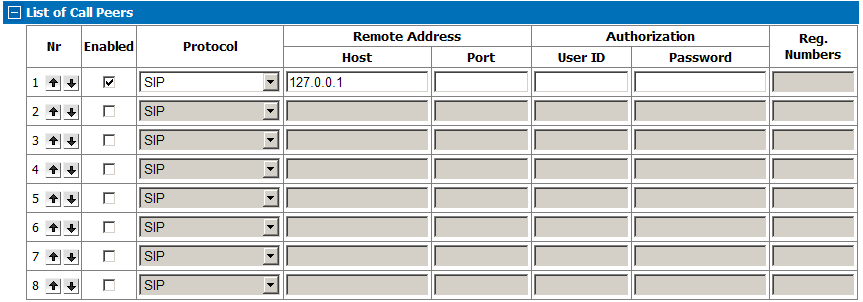

Defines the order in which call peers are accessed in case of a failover scenario. Use the arrows to rearrange the order.

Select to enable a call peer. Clear to disable a call peer.

Lists the possible signaling protocols (H.323, SIP, H.323 with RAS, or SIP with registration). Select a protocol compatible with your call peer. If you select an H.323 Gatekeeper ("H.323 with RAS") you must not use H.323 with any other active call peer.

Enter the remote IP address or host name of the call peer (Gateway, Gatekeeper, Registrar or CallManager) and the relevant signaling port number. This parameter supports host names for H.323 only.

Enter the user name and password for authentication with an H.323 gatekeeper or a SIP server.

A number to be registered at an H.323 gatekeeper or SIP registrar. When the parameter RegistrationType is set to "Gateway," the number is interpreted as a prefix. When the parameter RegistrationType is set to "Terminal", FoIP registers as a terminal with this number at the gatekeeper.
