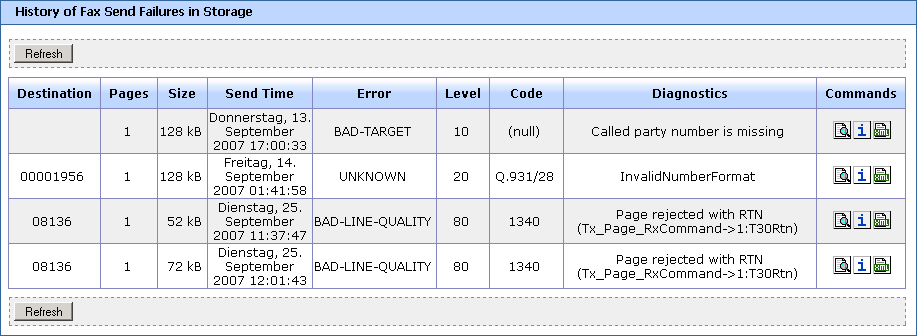

History of Fax Send Failures in Storage Window
This page appears when you select from the Fax over IP menu. Use this page to view messages that could not be sent.
- Refresh button
- Click to update the values on the screen.
- Destination
- The fax number of the called subscriber.
- Pages
- Number of pages of a fax message.
- Size
- Size of the fax message.
- Send Time
- Date and time when FoIP started sending the message.
- Error
- Shows OK or a simple error cause.
- Level
- Shows send completion level. A 100 means the message was sent successfully.
- Code
- A more detailed error code (not yet defined).
- Diagnostics
- Additional information about an error.
- Commands
-
Use these commands for managing the message:
- Click
to display the content of the fax (including header line) in a TIFF viewer or to save the fax in
TIFF format.
- Click
to display the content of the fax in a TIFF viewer or to save the fax in TIFF format.
- Click
to display additional information about a message.
- Click
to display the source of the message in XML format.
- Click
