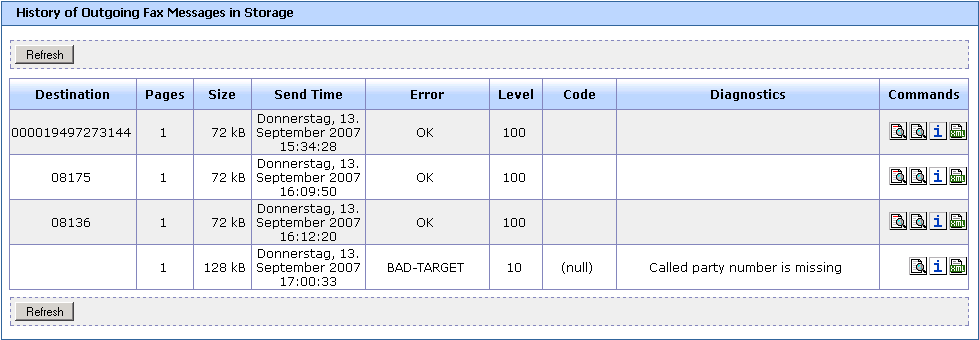

History of Outgoing Fax Messages in Storage Window
This page appears when you select from the Fax over IP menu. Use this page to view all sent and unsent messsages.
- Refresh button
- Click to update the values on the screen.
- Destination
- The fax number of the called subscriber.
- Pages
- Number of pages of a fax message.
- Size
- Size of the fax message.
- Send Time
- Date and time when FoIP started sending the message.
- Error
- Shows OK or a simple error cause.
- Level
- Shows send completion level. A 100 means the message was sent successfully.
- Code
- A more detailed error code (not yet defined).
- Diagnostics
- Additional information about an error.
- Commands
-
Use these commands for managing the message:
- Click
to display the content of the fax (including header line) in a TIFF viewer or to save the fax in
TIFF format.
- Click
to display the content of the fax in a TIFF viewer or to save the fax in TIFF format.
- Click
to display additional information about a message.
- Click
to display the source of the message in XML format.
- Click
