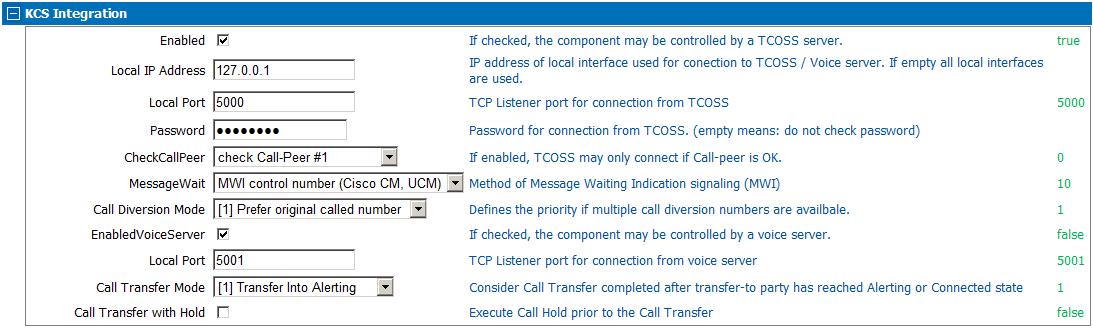

KCS Integration Tab
- Enabled
-
If checked, FoIP can be controlled by a TCOSS server.
- Local IP Address
- IP address of local interface used for connection to TCOSS / Voice server. If empty all local interfaces are used.
- Local Port
- TCP listener port for connection from TCOSS.
- Password
- Password for connection from TCOSS. If this value is empty, the password is not checked.
- CheckCallPeer
- If enabled, TCOSS connection is not established unless the call peer configured in FoIP is OK.
- MessageWait
- Method of Message Waiting Indication signaling (MWI). Different gateways use different standards.
- Call Diversion Mode
- Defines the priority if multiple call diversion numbers are available.
- EnabledVoiceServer
- If selected, the component may be controlled by a voice server.
- Local Port
- Specify the TCP Listener port for connection from voice server.
- Call Transfer Mode
- Specify when a call transfer is considered complete: when the transfer-to party has reached "Alerting" or "Connected" state
- Call Transfer with Hold
- Select to execute Call Hold prior to Call Transfer.
