› Integration › Generative AI › Integrate TotalAgility with Generative AI

Integrate TotalAgility with Generative AI

Use the following procedure to integrate TotalAgility with Generative AI.

You can add more than one integration for Generative AI providers.

  1. Navigate to Integration > Generative AI.

    The Generative AI providers page appears. By default, the Tungsten AI provider is available. You can use this AI provider or configure other Generative AI providers supported by TotalAgility.

  2. Select New to configure other Generative AI providers.

    The New AI provider configuration dialog box is displayed.

  3. On the Type list, select one of the AI providers and configure it to use as a Standard or Vision model.

    Configure the standard model settings when you:

    • Use an AI provider.

    • Do not use an image to generate an item.

    Configure the vision model settings when you:

    • Use an AI provider.

    • Use an image to generate an item.

    If the vision settings are not configured or the specified model does not support using images, an error appears.

    • OpenAI (default)

      Configuration settings

      Description

      ID

      Provide a unique ID for the AI provider.

      Display name

      Enter the AI provider name to help in identifying the server's name in the list.

      Use legacy function syntax

      If selected, TotalAgility uses this "function" syntax to send the request to the AI provider; otherwise, TotalAgility makes use of the latest "tools" function syntax to send the request.

      When you execute Copilot, Generative AI Activity, or Generative AI action using Data objects, the legacy or latest function syntax is used, depending on the setting configured. If the model does not support the syntax, an error occurs.

      Use provider as

      Option Description

      Copilot for development

      If selected, the AI provider is used as the Copilot for development. (Default: Clear)

      Copilot for extraction

      If selected, the AI provider is used as an Extraction provider. (Default: Clear)

      When multiple AI providers are configured, you can use only one AI provider (OpenAI or Azure OpenAI) as the Copilot for development or the Copilot for data extraction.

      Standard Model: Use this model when generating an item using an AI provider and not an image.
      API URL

      Enter the API URL for the selected provider.

      Authentication

      Select the authentication type:

      • API key: Enter the API key. This key is used for authentication/authorization.

      • OAuth: Select the OAuth server configured in TotalAgility. See Configure OAuth server.

        At runtime, when calling an AI provider using an OAuth server, the access token is automatically retrieved and included in the Authorization header. Additionally, the access token is automatically refreshed based on the refresh interval set in the OAuth Server.

      Use custom API key header

      If selected, you can specify an API key header name for API key authentication; otherwise, the default API key header name is used. (Default: Clear)

      API key

      The API key for the Generative AI provider. The supported API key version is 2024-10-21.

      The maximum supported length for the API key is 2,000 characters.

      Model

      Enter the AI provider model, such as gpt-3.5-turbo, to align with your requirement.

      Temperature

      Set the process Temperature for the AI provider. (Default: 0.5, Minimum value: 0, and Maximum value: 2)

      Temperature is a parameter that controls the level of creativity in the AI-generated text. You get a more focused or diverse text based on the temperature set. A higher temperature means the model takes more risks, giving you a mixed response.

      When the AI provider is configured as "Copilot for extraction", the system ignores the temperature parameter and always uses a fixed value of 0. This ensures deterministic and repeatable extraction results; therefore, changing the temperature has no effect on the extraction output.

      Timeout in seconds

      Configure the timeout period in seconds for the provider. (Default: 300, minimum: 120, and maximum: 3600)

      When you send a request to an AI model, such as a text generation or image processing task, the timeout period ensures the request does not become unresponsive indefinitely. This is helpful as some providers are slower than others, and adjusting the timeout period accordingly can optimize performance.

      For example, if you set a timeout period of 120 seconds for a text generation request, the system waits up to 120 seconds for the AI to generate the response. If it takes longer, the system terminates the request and returns an error.

      Retry count

      The number of times a system retries a failed operation for each provider before giving up and returning a failure response. (Default: 5, Minimum: 0, and Maximum: 100).

      For example, if you set a retry count of 3, the system attempts to resend a failed request up to three times before finally returning an error if the request continues to fail.

      When you use the AI models, the timeout and retry count settings are applied for Copilot, Copilot for extraction, dashboard insights, Copilot insights, and vision usage.

      Vision Model: Use this model when generating an item using an AI provider and an image. If the vision settings are not configured or the specified model does not support images, an error appears.
      API URL

      Enter the API URL for the vision model.

      Authentication

      Select the authentication type:

      • API key: Enter the API key. This key is used for authentication/authorization.

      • OAuth: Selected the OAuth server configured in TotalAgility. See Configure OAuth server.

        At runtime, when calling an AI provider using an OAuth server, the access token is automatically retrieved and included in the Authorization header, in line with the existing support for OAuth servers in other areas. Additionally, the access token is refreshed automatically based on the refresh interval set in the OAuth Server.

      Use custom API key header

      If selected, you can specify an API key header name for API key authentication; otherwise, the default API key header name is used. (Default: Clear)

      API key

      The API key for the Generative AI provider. The supported API key version is 2024-10-21.

      The maximum supported length for the API key is 2,000 characters.

      Model

      Optional. Select the AI provider model, such as gpt-4-vision-preview, if using an image as the input. However, you can change the model to align with your requirements.

      Token limit

      Set the token limit for the provider. (Default: 3000)

      Tokens are word fragments that are generated when the AI provider processes the input. The token limit restricts the number of tokens (usually words) sent to a model per request.

      Timeout in seconds

      Configure the timeout period in seconds for the provider. (Default: 300, minimum: 120, and maximum: 3600)

      Retry count

      Set the retry count for the provider. (Default: 5, minimum: 0, and maximum: 100)

    • Azure OpenAI

      The Azure OpenAI provider type has the same configuration options as OpenAI.

      You need not set the model for Azure OpenAI provider type, as it is not used by Azure.

    • Custom LLM

      Configuration settings

      Description

      ID

      Enter an ID for the AI provider.

      The system identifies the AI provider with this ID.

      Display name

      Enter the AI provider name to help identify the server's name in the list.

      Process

      Select the custom service or synchronous process that includes the following variables.

      Variable name

      Variable type

      Initialization

      Inputs:

      Document Content

      String

      Yes

      Document Type

      String

      Yes

      Input Prompt

      String

      Yes

      Seed

      Short

      Yes

      Temperature

      Double

      Yes

      Use seed

      Bool

      Yes

      Document

      Document

      Yes

      Outputs:

      Output

      String

      No

      Error Raised

      Bool

      No

      Status Code

      Short

      No

      Error Message

      String

      No

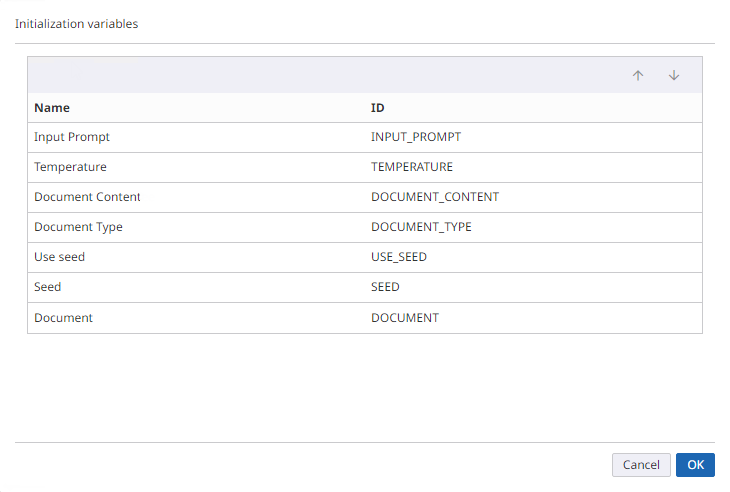

      If the required process is not available, you can select a new one by selecting Create new process. A synchronous process with the correct input and output variables is automatically created. This process is then available on the Business processes page, and the variables are initialized in the following order.

      Initializationorder

      When a TotalAgility document is used, the Document variable is initialized with the document instance ID at runtime. When a form is configured with the Generative AI chat control or Copilot using AI Agent as the provider and an inline image as the source, then the Document Content variable is initialized with a base64 string of that image.

      • You can change the name of the variables if the initialization order is unchanged.

      • You cannot delete a process if it is configured as a custom LLM AI provider.

    • AI Agent

      The AI Agent provider type has the same configuration options as Custom LLM.

  4. Select Save.
    The configured AI provider appears on the Generative AI providers page.

    • When you open the existing AI provider, the API key is encrypted, and only the last five digits of the key are displayed.

    • You can update or delete an existing Generative AI provider.
