Adding a Floorplan

You can optionally provide floorplans for your building locations. Floorplans offer users a detailed view of where the MFDs or printers are located. Floorplans are linked to specific building locations, and if needed, multiple floorplans can be linked. For example a building may have multiple floors and you can provide a floorplan for each floor.

Note: You add floorplan images for locations when you configure Geo-locations. You pin-point the exact location on the floorplan for the MFD or printer when you configure MFDs and printers.

To add a floorplan for a location, do the following:

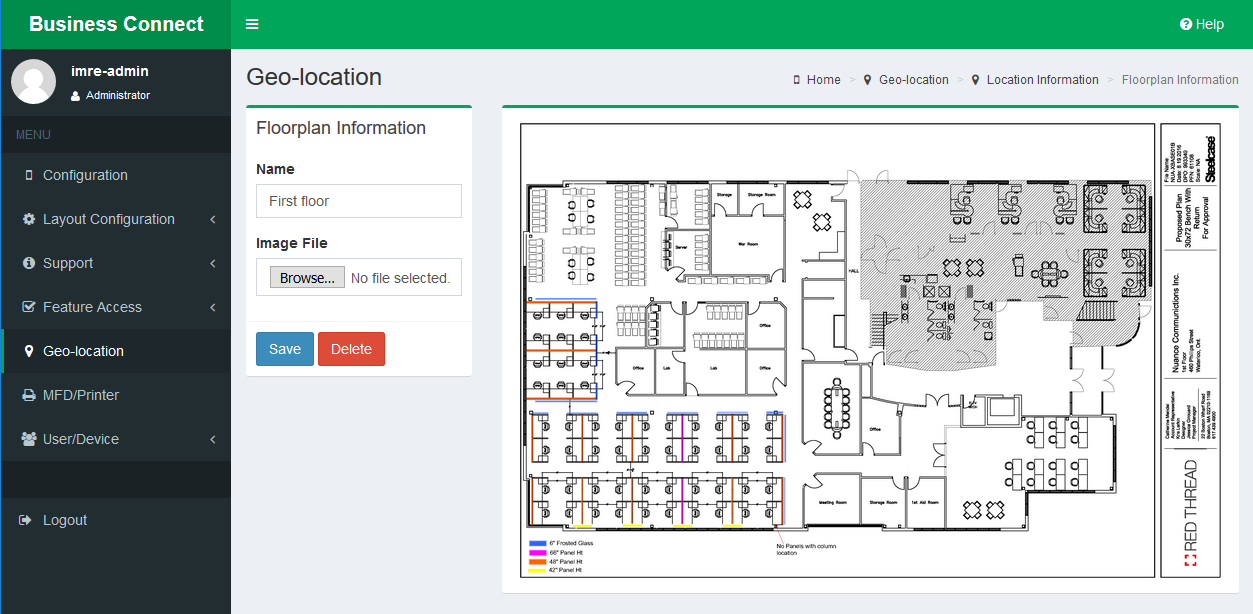

  1. On the Geo-location page, find the building to provide floorplan information for and click Add new floorplan.
  2. Enter a Name for the floorplan.
  3. Under Image File, click the Browse button. Select the desired floorplan image, and click Open.
    Note: The image file formats are supported: JPEG (.jpg), GIF (.gif), IMG (.img), BMP (.bmp), and PNG (.png).
  4. Click Save, then click the Location Information link at the top of the page to return to the Floorplans list.
