Single sign-on under AAA
The AAA infrastructure requires a provider that can broadcast the authority login information to listeners.

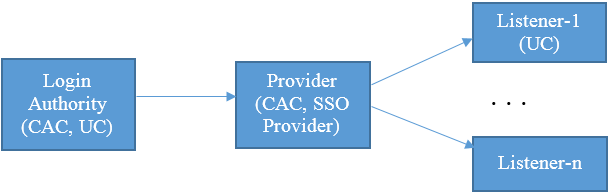

AAA infrastructure for single sign-on
![AAA infrastructure for single sign-on AAA infrastructure for single sign-on](Images/broadcast_auth_login_info-609x194.png)
To configure the Combined Client for Ricoh as the AAA authority, follow these steps:
- In Device Registration Service, select the device in the Devices pane.
- In the Details pane, set Authentication to OM Authentication with Device Access Control or OM Authentication.
- Set Print Manager Enable SSO Provider to True.
- Install the Combined Client for Ricoh
as described in Install the
Combined Client for Ricoh
.
When the above flag is turned on, both the Combined Client for Ricoh Xlet and the SSO provider servlet are installed on the device. Device actions such as Start and Stop apply to both applications.
To configure the Combined Client for Ricoh as a AAA listener, set Authentication to External AAA Provider. The Combined Client for Ricoh listens to AAA login and logout events through Output Manager or AutoStore depending on whether Enable Print Release is set to True or False.
