Quick Setup Process for AutoStore and Equitrac
Follow these steps to perform an installation of Samsung Smart UX for AutoStore and Equitrac environment:
All steps outlined are performed from the server where the
installation takes place. Administrative access to the server is required.
-
Install DRS.
-
Download the DRS 7.10 software zip file from the Equitrac partner portal.
Caution:Ensure you download DRS version 7.10 or later.
-
Once the archive downloads, extract it. The archive creates a new DRS
7.10 folder containing the following files:
- DeviceRegistrationService.zip
- DRS 7.10 Release Notes.htm
- DRS 7.10 User and Client Guide
- Equitrac_Third_Party-Readme.pdf
- Unzip the DeviceRegistrationService.zip. This creates a new folder containing the DeviceRegistrationService.exe.
- Run the DeviceRegistrationService.exe file, and follow the instructions to install DRS. For specific instructions, see the DRS 7.10 User and Client Guide included in your download archive.
-
Download the DRS 7.10 software zip file from the Equitrac partner portal.
-
Install Samsung Smart UX.
- Download the most recent version of Samsung Smart UX from the Equitrac Partner Portal.
- Once the archive downloads, extract SmartUXServices<build-number>.zip. The archive contains the SamsungSmartUX-prod.apk and SmartUXServices.apk files.
-
Upload the Samsung Smart UX client and server package files to DRS:
-
Open a web browser and enter http://DRSServerIP:9000/device where
DRSServerIP is the IP address of the server where you installed DRS. The
Kofax Device Registration Service screen
opens:
- Select the Files tab.
- From the Device Type drop-down list, select Toshiba Unified Client.
- At the bottom of the screen, click the Upload button. This opens a file explorer, where you can navigate to the SamsungSmartUX-prod.apk and SmartUXServices.apk files and upload these files.
-
Open a web browser and enter http://DRSServerIP:9000/device where
DRSServerIP is the IP address of the server where you installed DRS. The
Kofax Device Registration Service screen
opens:
-

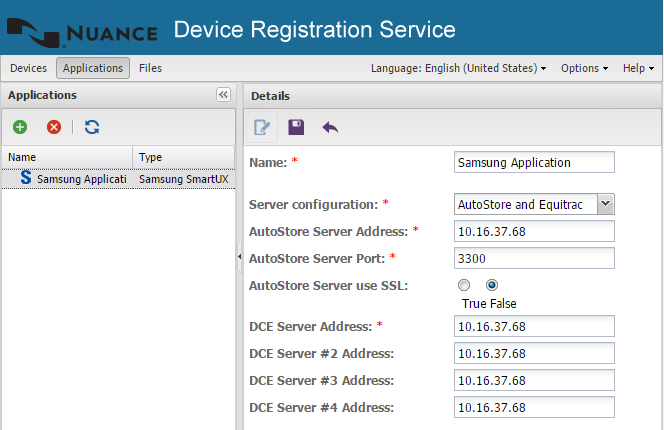

Create the application in DRS:
-
Select the Applications tab.
-
Click the green (
) button at the top of the left Applications pane. The Add Application function loads into the right pane.
- In the Name field, enter a name for the application. You can use any name you like; for this example, Samsung Smart UX was used.
- From the Application Type drop-down list, select Samsung SmartUX. New options then display below.
- From the Server Configuration drop-down list, select AutoStore and Equitrac.
- In the AutoStore Server Address field (required), enter the IP address used by the AutoStore Server.
- In the AutoStore Server Port field, enter the server port used by the AutoStore Server.
- In the AutoStore Server use SSL field, select True or False (it should match what is on the Preferences tab of the Samsung Smart UX component).
- In the DCE Server Address fields, enter the IP addresses used by the Equitrac Server.
-
Click the Save button (
) at the top of the Add Application screen.
-
Select the Applications tab.
-
Add a device in DRS:
-
Select the Devices tab.
-
Click the green (
) button at the top of the left Devices pane. The Add Device function loads into the right pane.
- In the Name field (required), enter a name for the Samsung Smart UX device or device group that identifies it on the network.
- In the Address field (required), enter the IP address of the device.
- Enter the Username and Password for the device. By default, the username is admin and the password is left blank.
- From the Application drop-down list (required), select the application you created. In this example, Samsung Smart UX. The rest of the Add Device fields appear below.
- In the Device use SSL field, select True or False (Device use SSL should match SSL settings on a device).
- In the Client Package field (required), select SamsungSmartUX-prod.apk - Kofax Unified Client for Samsung Smart UX <build-number> from a list of uploaded packages.
- In the Server Package field (required), select SmartUXServices.apk - Smart UX License Management <version-number> from a list of uploaded packages.
-
Click the Save (
) button at the top of the Add Device pane.
-
Select the Devices tab.
-
Execute final actions. Once you save the Device, a new Select
Action... drop-down list displays at the top of the Devices
pane. The following actions are available:
- To install, select Install and click the
Run Action icon (
) to run the action. This may take a few moments to complete; once finished, a Successfully completed message appears in the Action History pane at the bottom of the screen.
- To uninstall, select Uninstall and click the
Run Action icon (
) to run the action. This may take a few moments to complete; once finished, a Successfully completed message appears in the Action History pane at the bottom of the screen.
- To configure, select Configure and click the
Run Action icon (
) to run the action. This may take a few moments to complete; once finished, a Successfully completed message appears in the Action History pane at the bottom of the screen.
- To install, select Install and click the
Run Action icon (
- Locate the auto-added device and configure it in Equitrac System Manager. For instructions see the Server-Side Configuration section of Device Registration Service User Guide. Besides configuring Equitrac server, you can also add and configure Samsung Smart UX component to an AutoStore workflow. For more information, see Device Registration Service User Guide and AutoStore Administration Guide.
Although you can deploy DRS to any server as long as there is no port
conflict, a best practice is to install the DRS wherever the Equitrac is
installed. In this way, the DRS server can control the same MFP devices that are
controlled by the corresponding Equitrac server.
