Overview
The Unified Client for Ricoh Smart Operation Panel embedded application for AutoStore and Output Manager delivers key AutoStore and Output Manager embedded features and functionality direct to the Ricoh Smart Operating Panel (SOP) devices. This client application can also be configured as a Unified Client that provides an integrated user experience for both print and capture workflows direct at the device.
Unified Client for Ricoh Smart Operation Panel controls access to the device, and acts as the gateway for Kofax functionality. Users must authenticate to gain access to Kofax-controlled device functions such as Follow-You Printing and document capture. The embedded client uses the Device Registration Service (DRS) to configure and deploy the embedded client to single or multiple Ricoh devices that are equipped with the Smart Operation Panel (SOP).

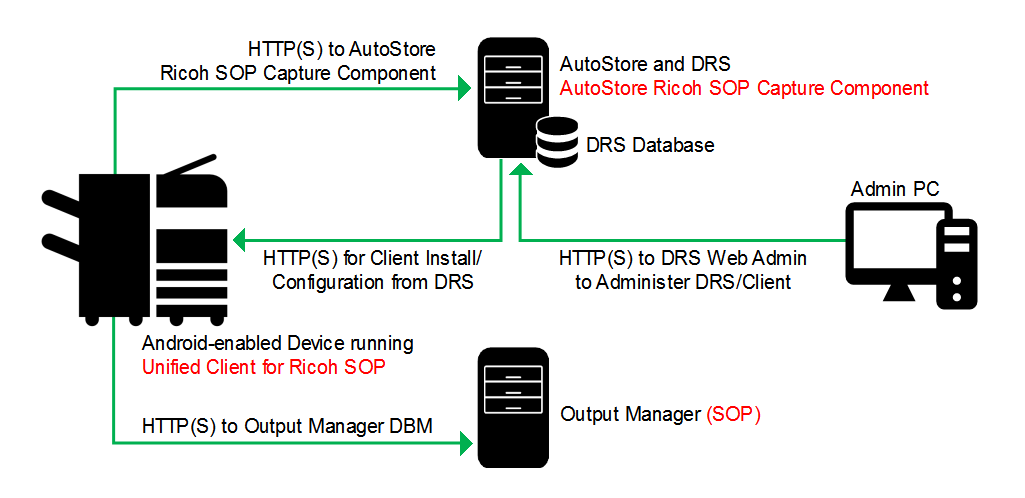

System architecture with AutoStore and Output Manager
![](Images/Architecture-Diagram_06_ASOM.png)
