OmniPage Form Template Editor

OmniPage Form Template Editor allows you to create templates that can be used to extract data using OmniPage_Extraction_Plugin present in the Extraction module.

Start the application

When you start the Form Template Editor application for the first time, the application displays the following window. The Home tab is selected by default.

  1. To start the application, launch Form Template Editor Application from the Windows start menu.

    Alternatively, double-click Template.exe from the installation directory.

  2. The Home tab opens by default, when you start the Form Template Editor application for the first time.

    By default, an empty library is created. A library is a collection of template files used for form processing. You can add a new template to it.

Add a template

A template is an image on which you define zones for processing. To add a new template to the default library:

  1. On the New Library tab in the left pane, click Add template.

    The Open dialog box appears.

  2. Select the form image and click Open.

    The selected document image opens in the application. The template name is displayed under the Templates tree and the image is displayed in the image panel.

Define zones for text types

You must define specific zones for different text types in the form. Zones can be defined by selecting the appropriate tool from the Zone tools section on the Home tab.

Two types of zones are drawn over the image:

  • Fill Text Zones
  • Anchor Zones

Fill Text Zone

The following fill text zones exist in Form Template.

Fill Text Zone Description

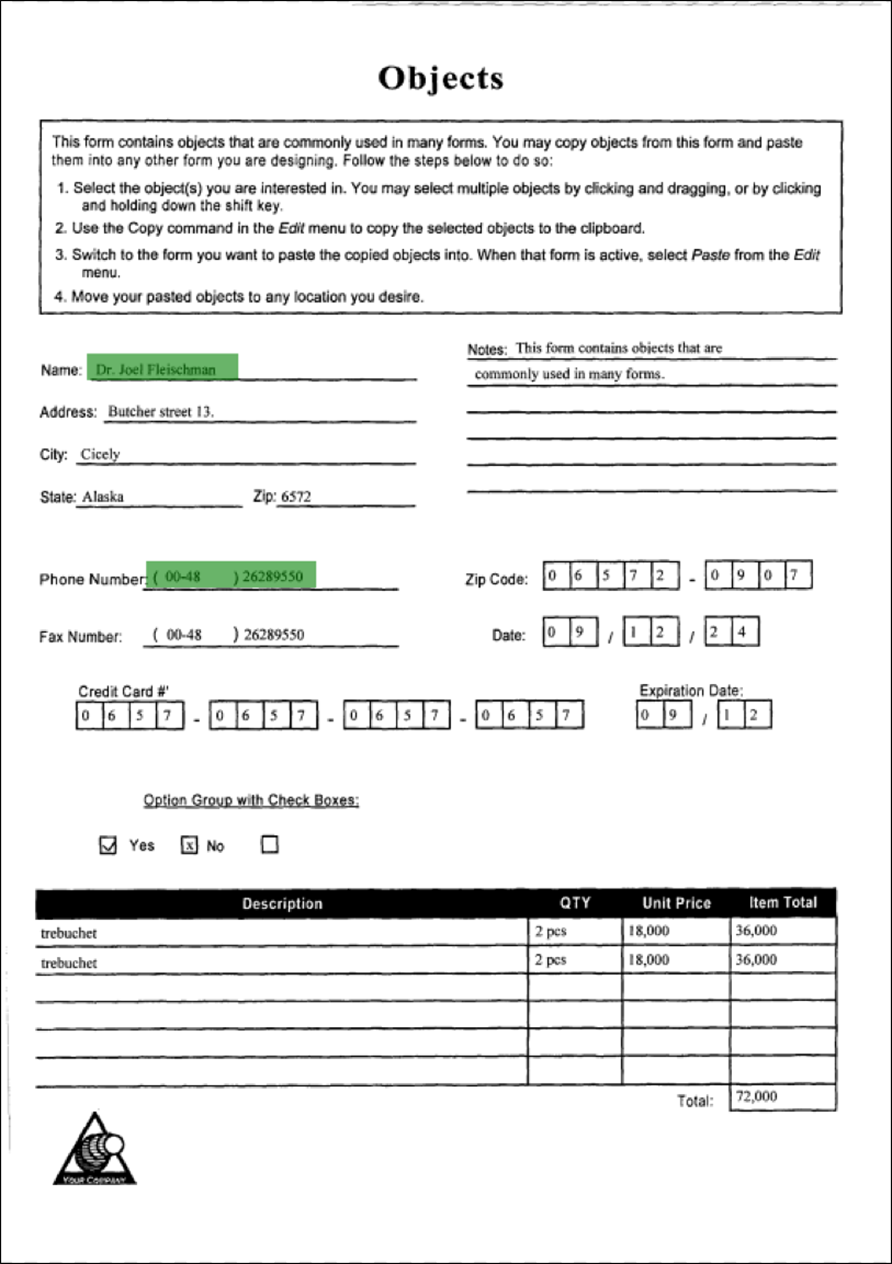

Fill text zone

Use it to mark an area as a text zone

Barcode zone

Use it to mark an area as a barcode zone

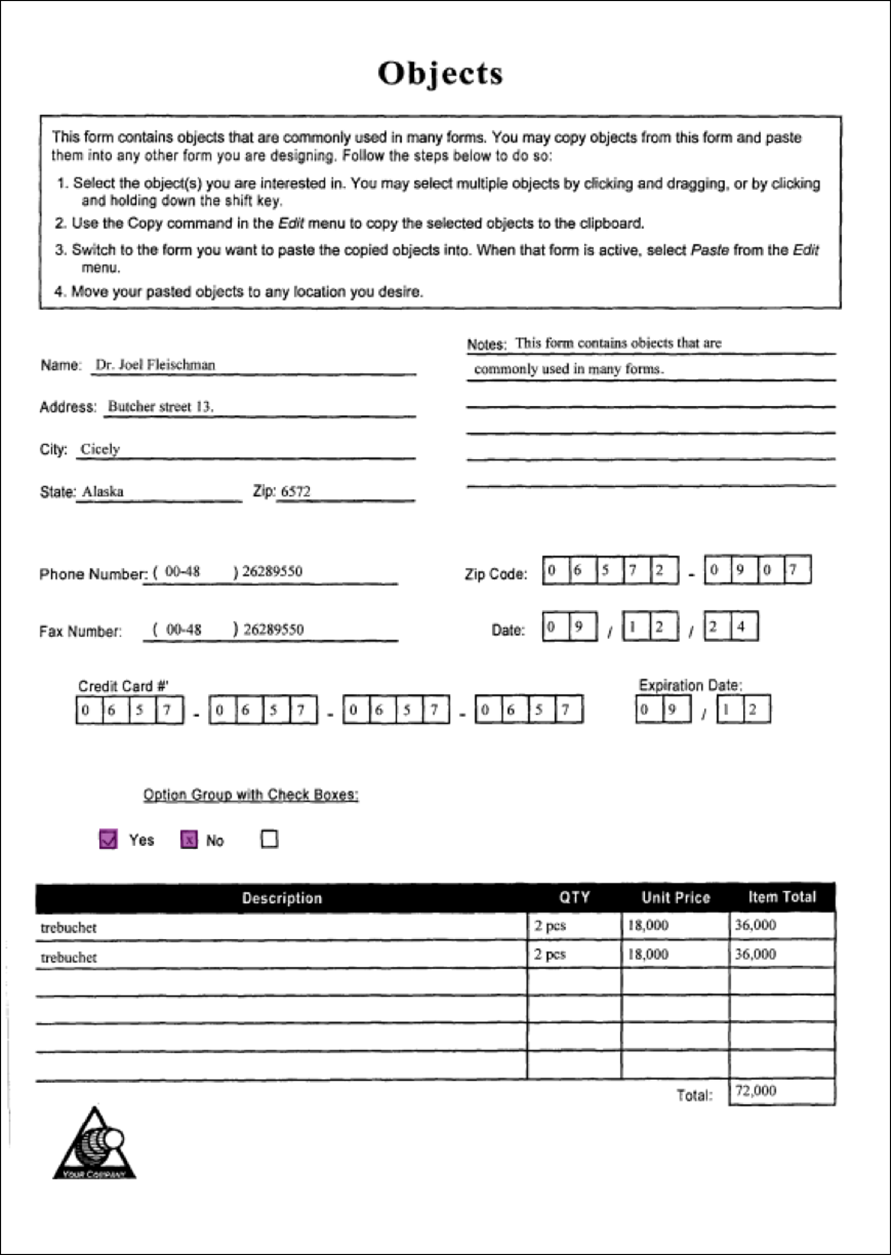

Check box zone

Use it to mark an area as a checkbox zone

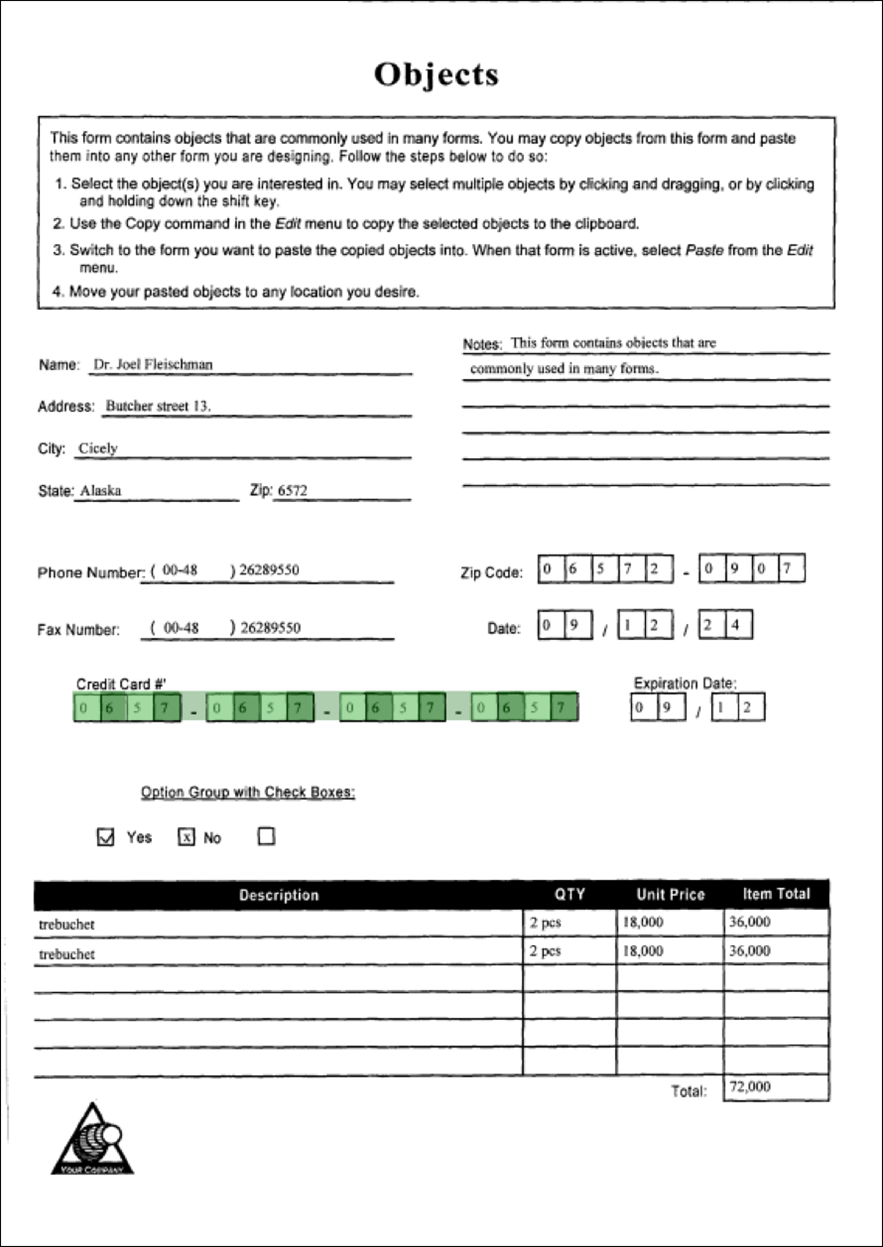

Comb zone

Use it to mark an area as a comb zone

Define fill text zones

  1. Navigate to the Home tab and select the Fill text zone tool.
  2. The cursor shape changes to the selected FillText icon with a cross-hair in its top-left corner indicating that you can use it to mark an area as a particular type of zone.

Anchor zone

Anchor zones are defined by their types and content. Types define what the Anchor zone function is in form recognition and template creation. Content determines the actual information sought by the Anchor zone.

Each anchor zone has a reference point. The reference point can be:

  • The center of the bounding box.

  • The top-left, top-right, bottom-left, or bottom-right corner of the bounding box.

Template selection and template matching happens through anchor zones.

Anchor types

There are four anchor types in Form Template Editor for text and bar code.

Anchor Description

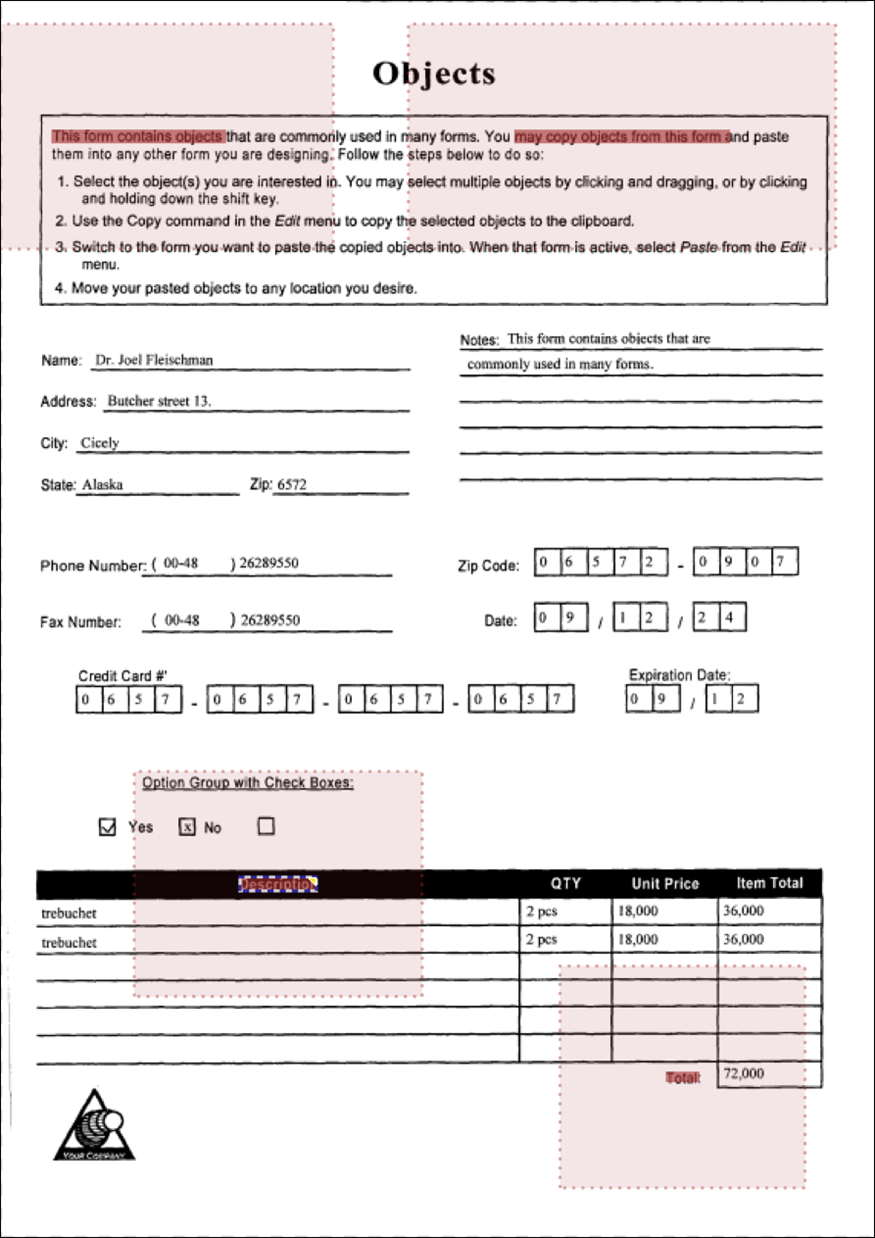

Positional

Use these anchor zones to align all fill zones on the page or to select the template. Using four anchors is recommended because the images (especially digital camera pictures of documents taken from a steep angle) can get distorted. It is advised to place positional anchors close to the four corners of the page. It is a page-level operation. It is not mandatory to define positional anchors. Linear distortions (skews, shifts, zoom-ins, zoom-outs) can be corrected with positional anchors.

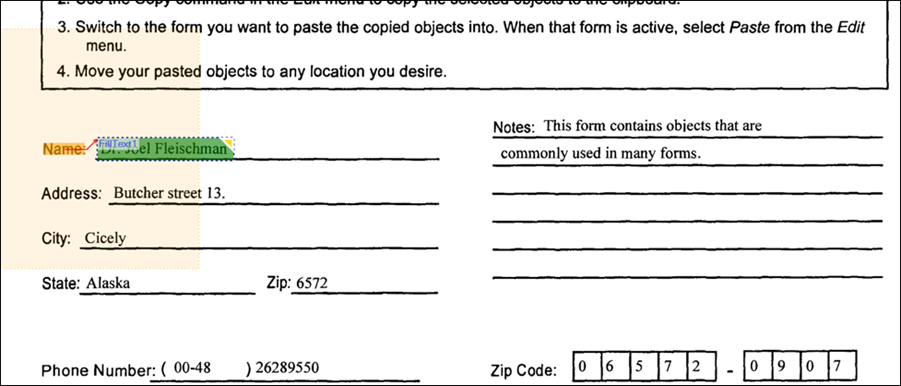

Reference

Use reference anchors (or reference zones) to align the fill zones on the page more precisely. The positional anchor alignment always precedes it. It is a zone-level operation. You can define different reference anchor to each fill zone. The position of the reference anchor assigned determines the position of the fill zone. It is not mandatory to define reference anchors. If a zone does not have reference anchors, then it is moved to the position calculated based on the positional anchors. Reference anchors must be used when you want to define a fill zone whose position on a page can change, but there is some fixed text on the page in a relatively same position to the zone. It is recommended to choose the static text positioned before or above the zone as a reference anchor. At least, one reference anchor must be defined for one zone.

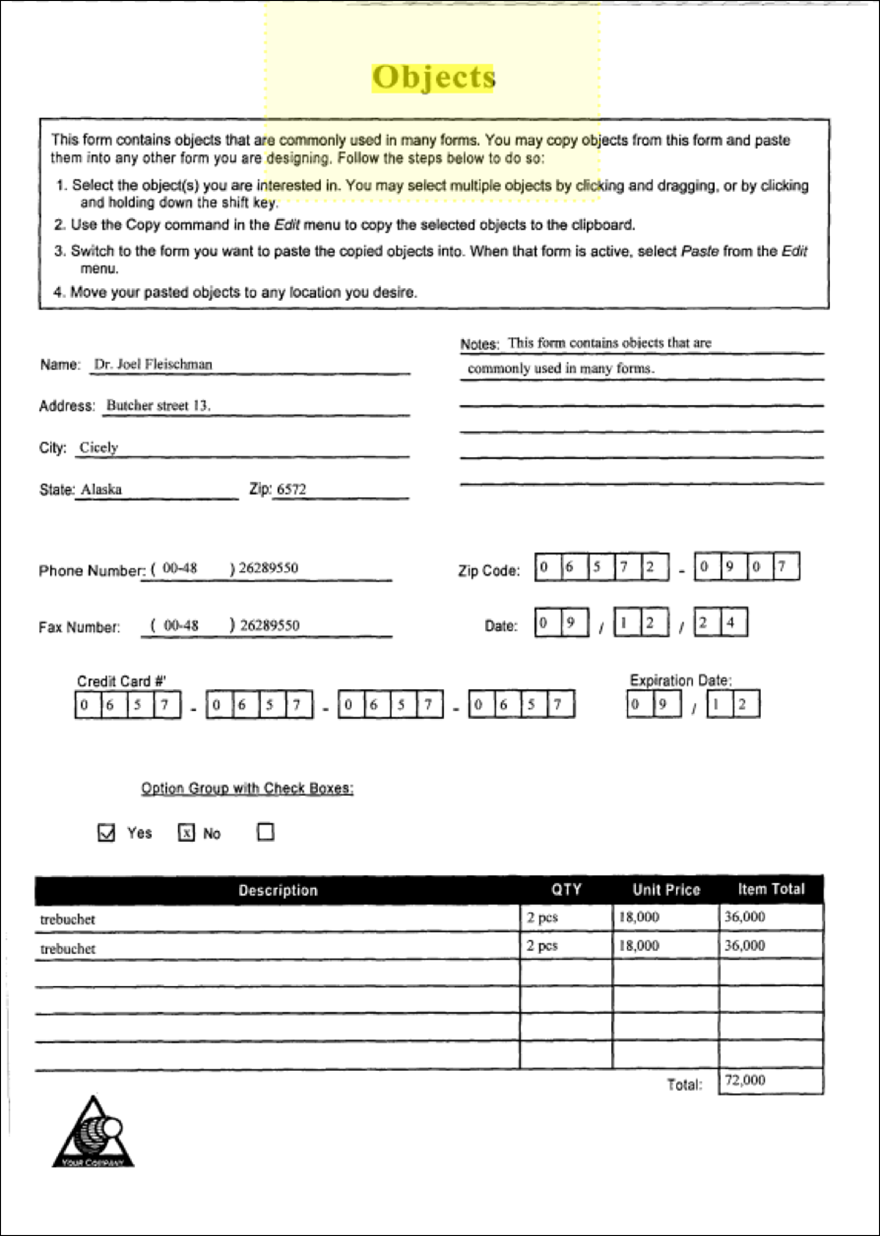

Selector

Selector anchors are not used in form alignment and positioning. You use them only for selecting the template (whether the template matches the document or not). It is a template-level operation. It is not mandatory to define selector anchors. You must find some text on the page that is specific only to that particular page (in a certain area of the page). You can define more than one selectors on the page. The best candidates for selector anchors are document titles and document version numbers.

Check

Check anchors are used for checking form alignment. Check anchors are not used during template selection and matching. The positions of Check anchors are determined the same way, as that of the fill zones. After positioning, the content is checked and if it does not match with the given content, an error is returned.

We recommend you to draw 4 positional anchors on the corners of the image and at least 1 selector anchor.

Anchor Content

  • Text: The anchor contains static text. It is word based with a bounding box (can be LETTER based for backward compatibility). It can only contain one-line text. It is recommended to select anchors that consist of at least 4-5 words. Select text that does not resemble any nearby text such as Drift area. The anchor content may contain fixed text or regular expression filter. Text can be positional, reference, selector, and check anchor.
  • Bar code: The anchor contains static bar code and the bar code type must be specified. Bar code can be positional, reference, selector, and check anchor.

Define text anchor zones

  1. On the Home tab, select the Text Anchor tool.

    The text anchor tool is highlighted and a drop-down list is displayed with the four types of text anchor zones.

  2. Click on a text anchor zone type.

    The cursor shape changes to the selected Fill Text Anchor icon with a cross-hair on the top-left corner indicating that you can use it to mark an area as a the selected Zone type.

Define bar code anchor zones

  1. On the Home tab, select the Barcode Anchor tool.

    The Barcode Anchor tool is highlighted and a drop-down list is displayed with the four types of Barcode anchor zones.

  2. Click on a bar code anchor zone type.

    The cursor shape changes to the selected Fill Barcode Anchor icon with a cross-hair on the top-left corner indicating that you can use it to mark an area as the selected Zone type.

Template constraints and settings

This topic describes some constraints for the template created using OmniPage Form Template Editor. You must follow these so that the template matches the test images properly and correct data is extracted.

  • Proper anchor tags must be specified in the template image.

  • The images (most importantly the templates) must be clean and recognizable.

  • The DPI should be high so the sizes of the recognizable characters fulfill the constraints.

  • The DPI of the template and the input files can be different, but the DPI values should be valid. DPI value is considered to be valid when computing the physical size of the page from the number of pixels and the DPI values match the real size of the original document. The size can be computed as the ratio of the number of pixels divided by the DPI value.

While creating the template, note the following recommendations:

  • You must ensure that the template file adheres to the constraints mentioned above.
  • Name of the index field should be mapped with the fill text zone from where data needs to be extracted for that index field.
  • You must specify appropriate Recognition Language in OmniPage Form Template Editor for proper data extraction. The default language is English.
  • Under New Library, click Templates to open the Language Collection Editor template settings.
  • You must set the Filling Method property to Handprinted in OmniPage Form Template Editor in case of hand-written data.

Template testing

  1. Use the Add test images option in the tree view to bring up a Windows file Open dialog box in which you can select from various file format scanned images on your PC to test your template libraries.
  2. Select the desired form image and click Open to load the image into Form Template Editor.

    Its state shows Image added and it can be expanded to show an empty list of matching and non-matching templates.

  3. Right-click the test image thumbnail in the tree-view and click Find match to check if any of the templates in your library matches the test file.
  4. If a matching template is found, Match found is displayed next to the test image name and the Matching templates list displays an expandable list of the matching templates.

    The zones are also listed under the templates. When you click on the matching template's name or any of its zones, the matching template image and its zones are displayed. At this stage, zone content listed under Text in the matching template zone list is displayed as N/A.

  5. If there is no matching template library for the test image, No match found is displayed on the item.

    If you click Extract data, field contents are displayed in the Text column.

Check template

To check the template for inconsistencies and other problems, perform the following procedure.

  1. Navigate to the Home tab.
  2. Select Check template.

    If there are some errors in the template, then the corresponding errors are displayed.

  3. Under File Menu, use the Save As option to save the created template.

    The template has .tlz extension.
