How to Create the Logical Output Management System in Remote Function Call Mode

  1. Log in to the SAP NetWeaver GUI for Microsoft Windows.
  2. Type SPAD in the transaction field and press Enter.
  3. On the Spool Administration screen, click Full administration.
  4. Click the Output management systems tab.
  5. Click Display next to Logical Output Management Systems.
  6. Click Change () and then press F1.

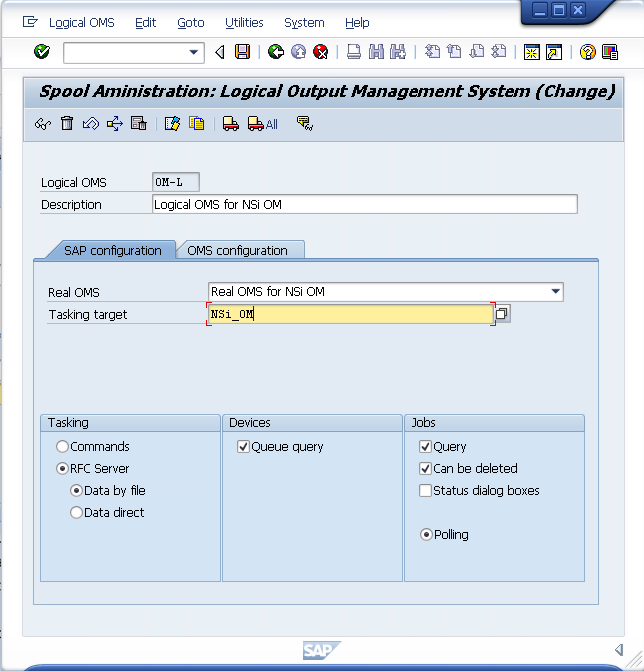

  7. Configure Logical Output Management System settings as shown in the following example:

    For Tasking target, type the RFC Destination value that you specified in How to Create the Remote Function Call connection in Remote Function Call Mode . Do not select Data direct.
  8. Save the settings.
