Create a process event
Create a process event to raise when an activity becomes available or completed.
Raising a process event involves the following procedures:
-
Setting up preconditions for the activity within a process map. Once the precondition is set, the status of the activity becomes "Awaiting Events" and the activity can only become pending once the associated process event is executed and the precondition is satisfied.
Create a process event
- Open the process for which to define the process (wait) event.
- On the process modeling bar, click Process events.
-
Click
New.
The New process event dialog box is displayed.
- Enter a unique Name for the event, such as SignedLoanAgreementReceived.
- Optional. Enter a Description for the event, such as "Waiting for signed loan agreement from customer".
-
Click
Add.
The process event is created.For a capture-enabled process, a process event, Scanned, is automatically added. Modify or delete the Scanned process event, as needed.
Record process events

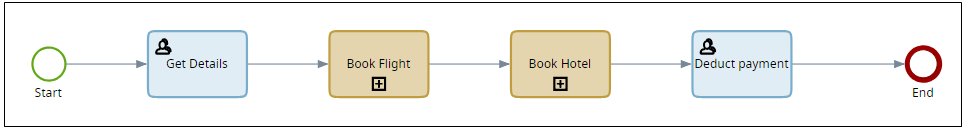

Record process events when an activity becomes pending or is completed. For example, in an online Arrange Travel process, the Deduct Payment activity waits for event status on the main process map. The Deduct Payment activity cannot become pending until both the Flight Confirmation and Hotel Confirmation events are completed.
TotalAgility provides APIs to record external events, such as a file being added to a document management system.
- Select the activity with which to associate a process event. For example, associate the Hotel Confirmation event with the Book Hotel activity.
- In the Activity properties panel, click the Advanced tab.
- On the Fire event list, select the process event that should start when the activity becomes available
- Similarly, select the process event that should start when the activity completes.
