How to create a workflow for Microsoft SharePoint Online
-
Select
Menu
> Settings
.
-
Select the
Capture
workflows
tab.
- Select Create workflow.
-
In the
Settings section:
-
In Workflow name, enter the name of the workflow.
-
Ensure that the Active checkbox is not selected.
-
Ensure that All users can use this workflow is selected.
-
-
In the
Source section:
-
Select Printer to scan pages with a printer using Printix Go and Printix Capture.
-
Make your selection for the printer scan settings: Orientation, Paper size, Color, Resolution, and 2-sided.
-
-
Select Mobile to scan pages with a phone or tablet using Printix App version 3.0.1 or newer on Android or iOS/iPadOS.
-
-
In the
Image processing section:
If Source is Mobile, the image processing is controlled on your phone or tablet.
-
Optionally, select Delete blank pages to have blank pages deleted.
-
Optionally, select Deskew to have captured images deskewed automatically.
-
Optionally, select Crop to have captured images cropped automatically.
-
In Rotation, select a rotation. The rotation is performed before any OCR.
-
-
In the
Output document section, select a
File type:
-
Select PDF - Searchable to generate the output document in a searchable PDF format.
-
In Image quality, select the image quality.
-
In PDF compatibility, select the PDF compatibility.
-
In Optimize OCR process for, select your preference for accuracy and speed.
-
In Language for OCR use, select Select language, then select the languages for OCR use.
-
-
Select PDF - Image only to generate the output document in an image-only PDF format.
-
In Image quality, select the image quality.
-
In PDF compatibility, select the PDF compatibility.
-
-
Select Microsoft Word to generate the output document in DOCX format.
-
In Image quality, select the image quality.
-
In Optimize OCR process for, select your preference for accuracy and speed.
-
In Language for OCR use, select one or more languages.
-
-
-
In the Metadata section:
-
If you don't want to use metadata for the capture workflow, select Remove to delete the metadata field.
-
In Name, enter a name for the metadata field.
-
In Label, enter a name that you want end-users to see.
-
Optionally, select Required if the metadata must get a non-empty value from end-users to continue the related capture job.
-
In Type, select the type of the metadata field.
-
If you selected Text, select a Validation type that determines what kind of value this metadata field can have.
If you select Date, the date format must be specified.
If you select Custom, a regular expression must be specified in JavaScript format.
-
If you selected Lookup, select Available items, then specify keys and values for the metadata field.
After naming a key, an option to add another key appears. Maximum 1000 rows can be listed.
-
Select Import to import items from a .CSV file.
Only the first two columns of the .CSV file are used. The rest of the columns are ignored.
-
Select the Up or Down arrow next to an item to move it up or down in the list.
-
Select Delete next to an item to remove it from the list.
-
Select Save to save the changes and close the dialog box.
-
-
-
In Default value, enter the default value for the metadata field.
If the Type of the metadata field is set to Text, the Default value must match the Validation type. For example, if the Validation type is Number, the Default value can only have numbers. You can select the braces { } to insert variables, such as Workflow name.
If the Type of the metadata field is set to Lookup, you can select one item from the available lookup items.
-
Select Add metadata field to add a new metadata field to the workflow.
Capture workflows for mobile do not yet support metadata fields, so they will not appear in the Printix App.
-
-

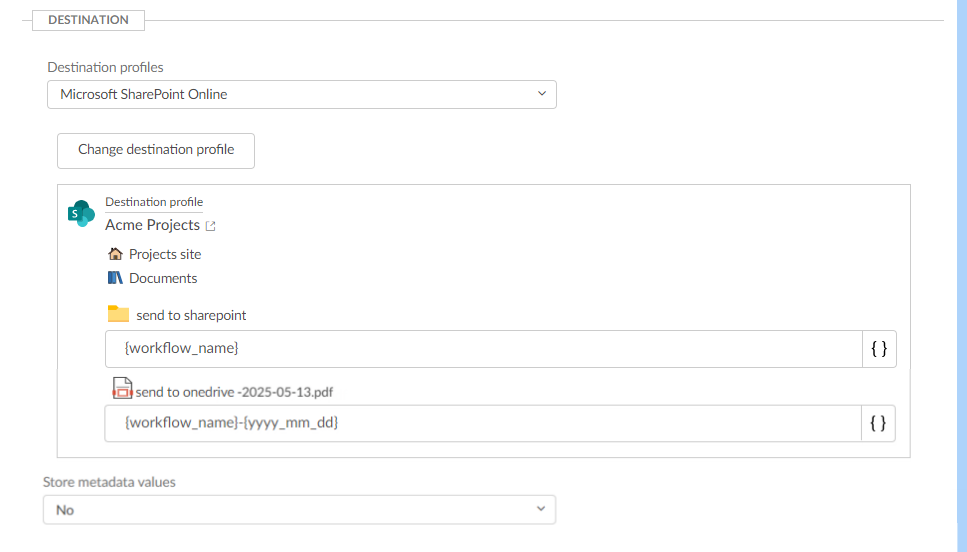

In the
Destination section:
-
In Destination profiles, select Microsoft SharePoint Online.
-
In Select destination profile, select among existing SharePoint Online destination profiles.
-
Select Create destination profile to create a new destination profile.
-
Optionally, under the Folder icon, enter a folder. You can select the braces { } to insert variables, such as Workflow name.
The entered folder is created as a subfolder of the folder defined in the destination profile.
-
Under the File icon, enter a file name. You can select the braces { } to insert variables, such as Workflow name.
-
Date and time are in UTC (Coordinated Universal Time).
-
-
In Store metadata values, select between:
-
No: No metadata file is stored next to the generated document. This is the default option for new workflows.
-
As JSON: A JSON file containing the metadata is stored next to the document in the selected destination.
-
-
- Select Create.
- Verify that the workflow works as expected.
- Activate the workflow.
- Optionally, make the workflow available to selected groups.
How to create a destination profile for Microsoft SharePoint Online
- Select Create destination profile.
-
Select
Destination.
If only one is available, it is selected automatically. Otherwise, select one.
-
Select
Sign in method (a Microsoft Entra directory configured on the
Authentication page).
If only one is available, it is selected automatically. Otherwise, select one.
- Grant access to the selected destination by selecting Grant access to Microsoft SharePoint Online.
-
On the Microsoft sign-in page:
-
Enter your administrator account.
You must have the global administrator role in Microsoft Entra ID to grant access to Microsoft SharePoint Online.
-
Enter Password.
-
- Select Sign in.
-
Printix
will ask you for permission to:
-
Sign in and read user profile.
-
Read and write items in all site collections.
-
-
Select
Accept.
-
Fill in the form.
-
In Name, enter a name for the destination profile.
-
In Site, select site.
-
In Document library, select document library.
-
In Folder, select folder. There might not be any folders. Folders can also be specified when you create a workflow for SharePoint.
The destination profile must be named differently than any existing Microsoft SharePoint Online destination profile.
-
- Select Create.
